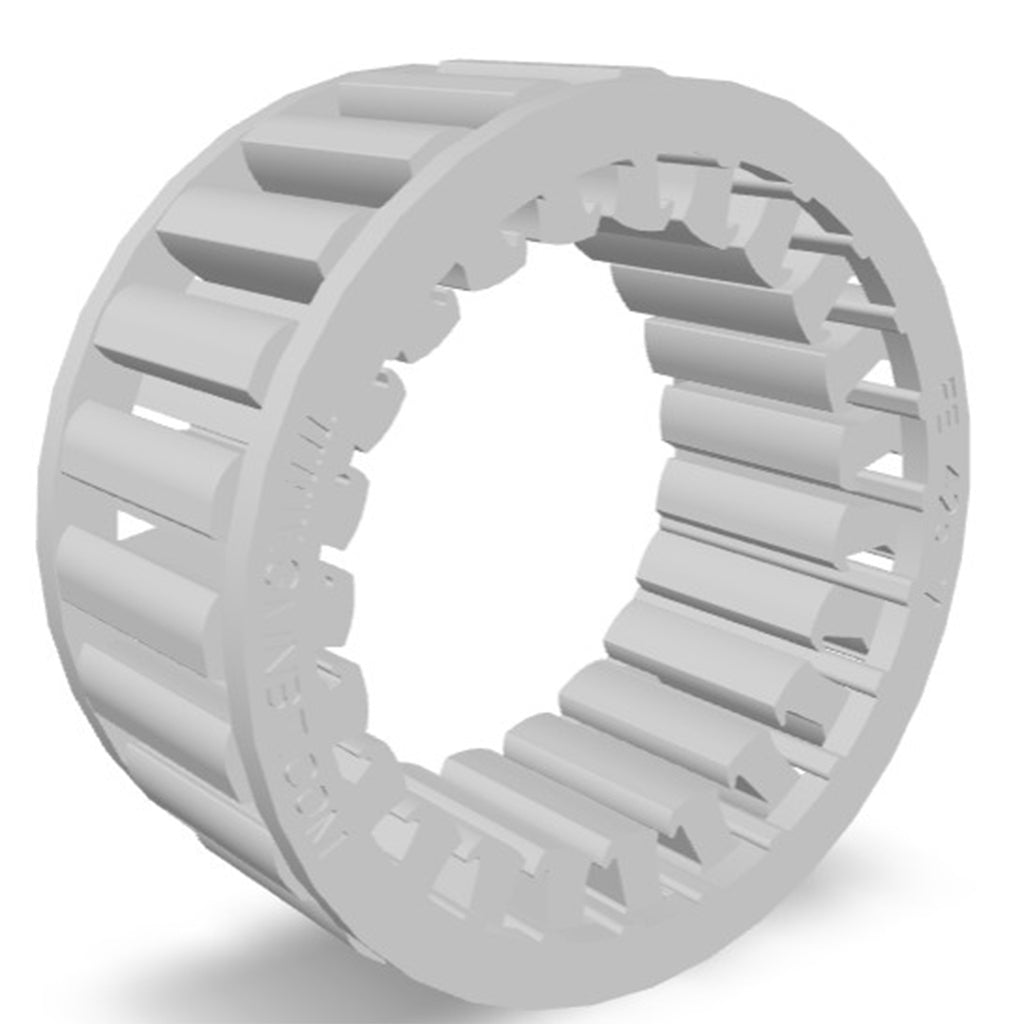

FE 425 M Freewheel Clutch Insert Element

GMNSKU: GMN-FE 425-M
No reviews

Price:
Sale price$140.99
Stock:
In stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Part Number FE 425 M
Series FE 400
Spring Type M (Meander)
Type Freewheel Clutch Insert Element
Hardened Steel Rings No



Dimensions

Bore Diameter d [mm] 17
Outer Diameter D [mm] 25
Width W [mm] 12


Geometric Data

Weight [kg] 0.010



Shaft & Housing Tolerances

Shaft & Housing Chamfer 1mm × 15°
Shaft Tolerance h5
Housing Tolerance H6
Shaft & Housing Hardness HRC 60+4, Ehd1 ≥ 1.3 mm
Shaft & Housing Surface Rz ≤ 2.5 µm


Ratings

Nominal Torque T [N⋅m] 79
Nominal Torque T [ft⋅lb] 58.300
Max. Indexing Frequency [Hz] 60
Max. Speed n [RPM] 8,100
Max. Temperature [°C] 170
