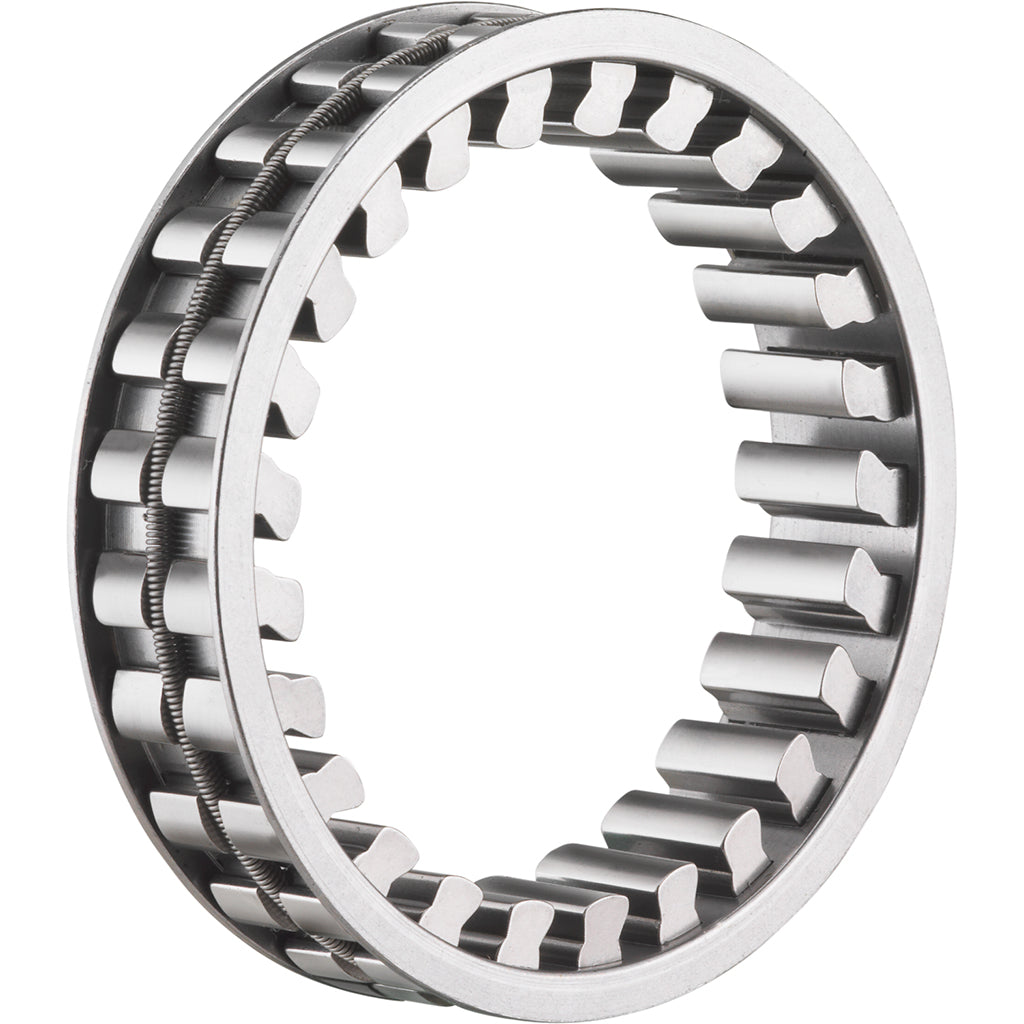

FE 8054 Z 16 Freewheel Clutch Insert Element

GMNSKU: GMN-FE 8054-Z16
No reviews

Price:
Sale price$352.74
Stock:
In stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Part Number FE 8054 Z 16
Series FE 8000
Spring Type Z (Tension)
Type Freewheel Clutch Insert Element
Hardened Steel Rings No


Dimensions

Bore Diameter d [mm] 54.760
Outer Diameter D [mm] 71.420
Width W [mm] 16

Geometric Data

Weight [kg] 0.107


Shaft & Housing Tolerances

Shaft & Housing Chamfer 1mm × 15°
Shaft Tolerance h6
Housing Tolerance H6
Shaft & Housing Hardness HRC 60+4, Ehd1 ≥ 1.3 mm
Shaft & Housing Surface Rz ≤ 2.5 µm

Ratings

Nominal Torque T [N⋅m] 1,080
Nominal Torque T [ft⋅lb] 796.600
Max. Indexing Frequency [Hz] 5
Max. Temperature [°C] 170
