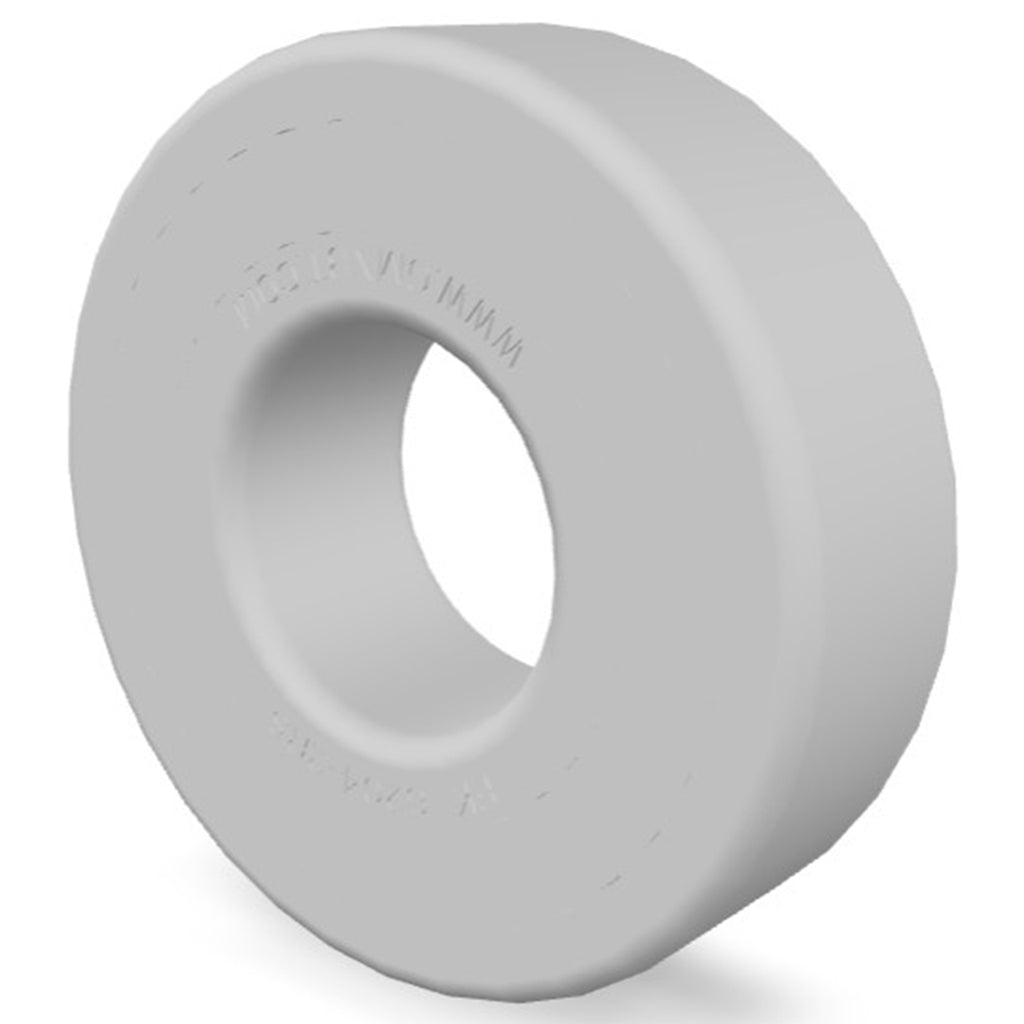

FK 6204 2RS Ball Bearing Freewheel Clutch Unit

GMNSKU: GMN-FK 6204 2RS
No reviews

Price:
Sale price$190.10
Stock:
In stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Part Number FK 6204 2RS
Series FK
Spring Type Z (Tension)
Type Ball Bearing Freewheel Clutch Unit
Sealed Yes
Integrated Ball Bearing Yes
Integrated Roller Bearing No
Lubrication Oil or Grease


Dimensions

Bore Diameter d [mm] 20
Outer Diameter D [mm] 47
Width W [mm] 14

Geometric Data

Outer Ring Keyway No
Inner Ring Keyway No
Weight [kg] 0.120
Edge Radius 1.500


Shaft & Housing Tolerances

Shaft & Housing Chamfer 1mm × 15°
Shaft Tolerance n6
Housing Tolerance N7

Ratings

Nominal Torque T [N⋅m] 60
Nominal Torque T [ft⋅lb] 44.300
Max. Indexing Frequency [Hz] 10
Max. Speed - Sealed 3,200
Max. Speed - Unsealed 7,500
Max. Dynamic Radial Load Cdyn [N] 6,869
Max. Static Radial Load Cstat [N] 4,268
Max. Temperature - Sealed [°C] 110
Max. Temperature - Unsealed [°C] 140
