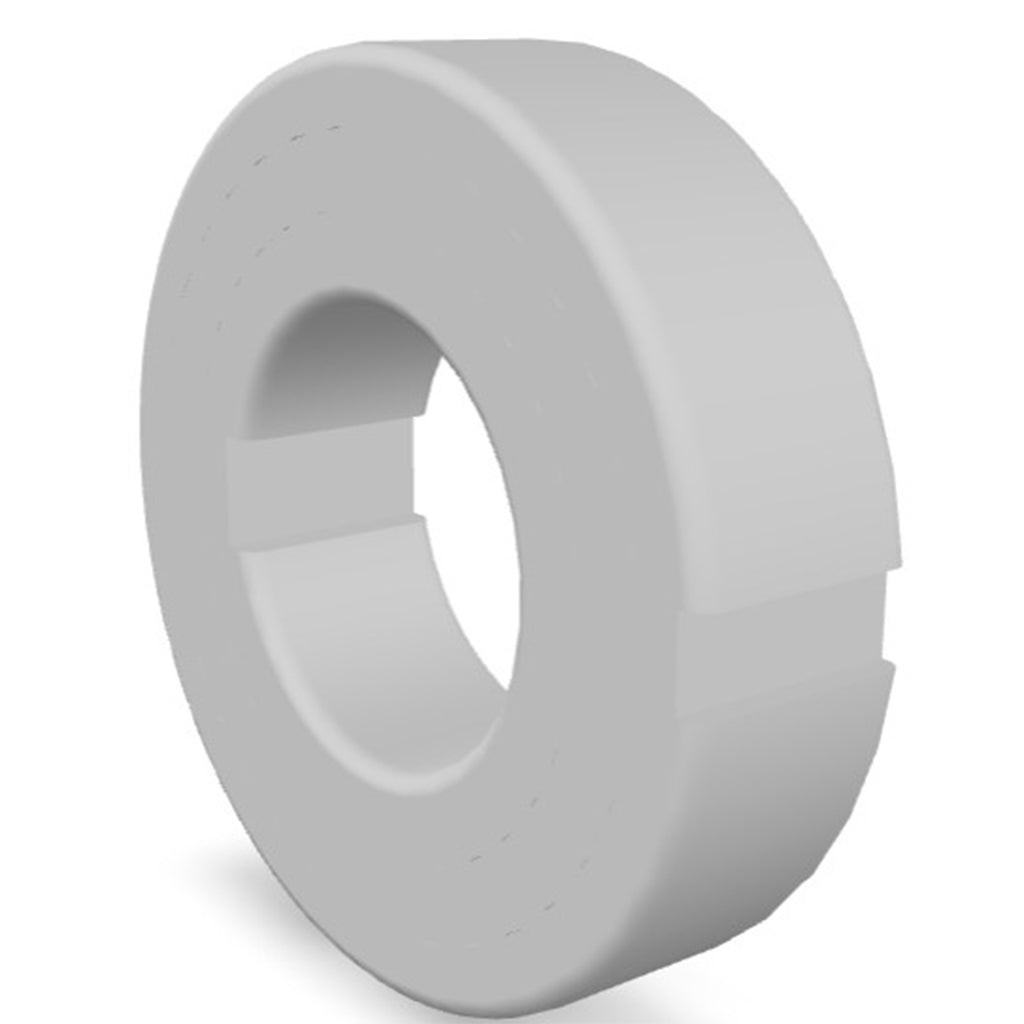

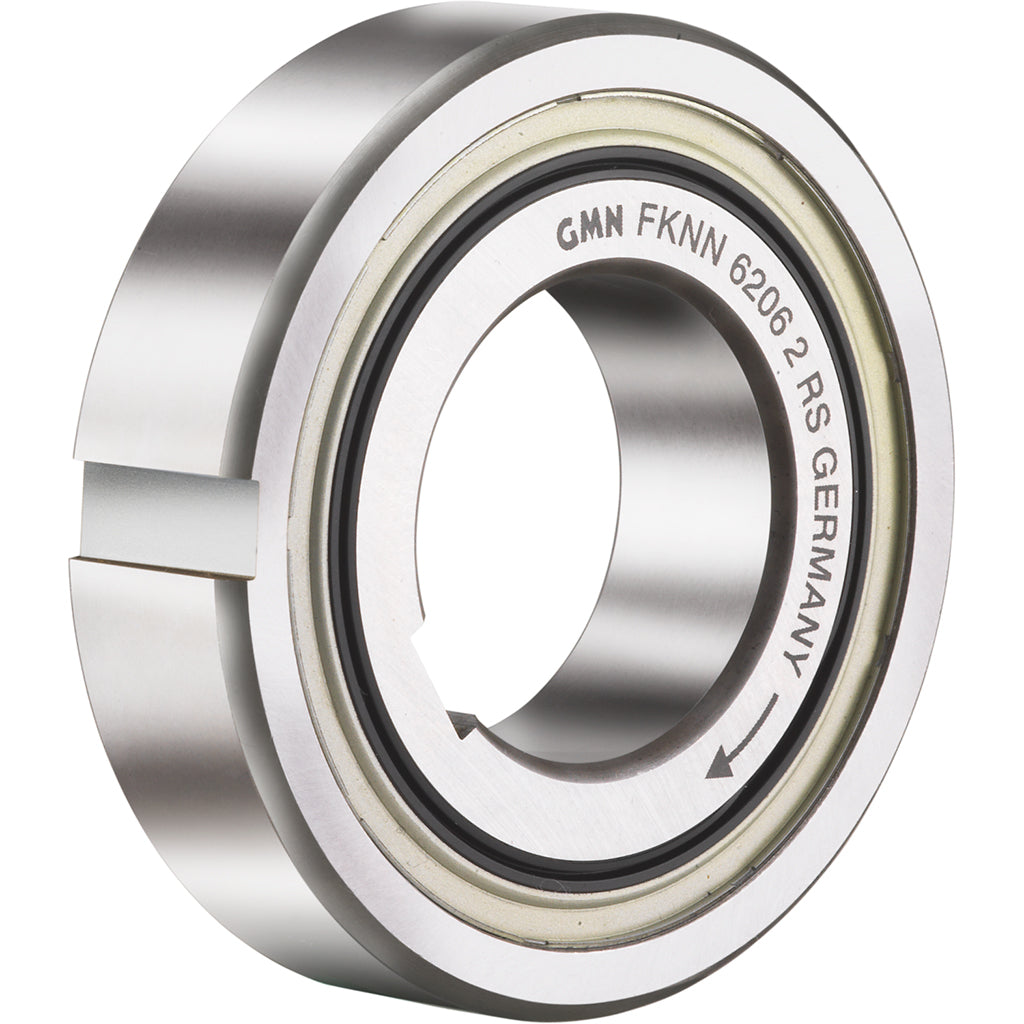

FKNN 6206-2RS Ball Bearing Freewheel Clutch Unit

GMNSKU: GMN-FKNN-6206-2RS
No reviews

Price:
Sale price$265.84
Stock:
In stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Part Number FKNN 6206 2RS
Series FKNN
Spring Type Z (Tension)
Type Ball Bearing Freewheel Clutch Unit
Sealed Yes
Integrated Ball Bearing Yes
Integrated Roller Bearing No
Lubrication Oil or Grease


Dimensions

Bore Diameter d [mm] 30
Outer Diameter D [mm] 62
Width W [mm] 16

Geometric Data

Outer Ring Keyway Yes
Inner Ring Keyway Yes
Weight [kg] 0.220
Edge Radius 1.500
Inner Ring Keyway Width b [mm] 8
Inner Ring Keyway Depth t [mm] 2


Shaft & Housing Tolerances

Shaft & Housing Chamfer 1mm × 15°
Shaft Tolerance n6
Housing Tolerance N7

Ratings

Nominal Torque T [N⋅m] 148
Nominal Torque T [ft⋅lb] 109.200
Max. Indexing Frequency [Hz] 10
Max. Speed - Sealed 2,400
Max. Speed - Unsealed 5,100
Max. Dynamic Radial Load Cdyn [N] 7,859
Max. Static Radial Load Cstat [N] 6,066
Max. Temperature - Sealed [°C] 110
Max. Temperature - Unsealed [°C] 140
