GMN Bearing S Series Bearings

GMNSKU: GMN-S-600
No reviews

Contact Us for Price Quote (use contact form on this page)

Contact Us for a Price Quote

Description

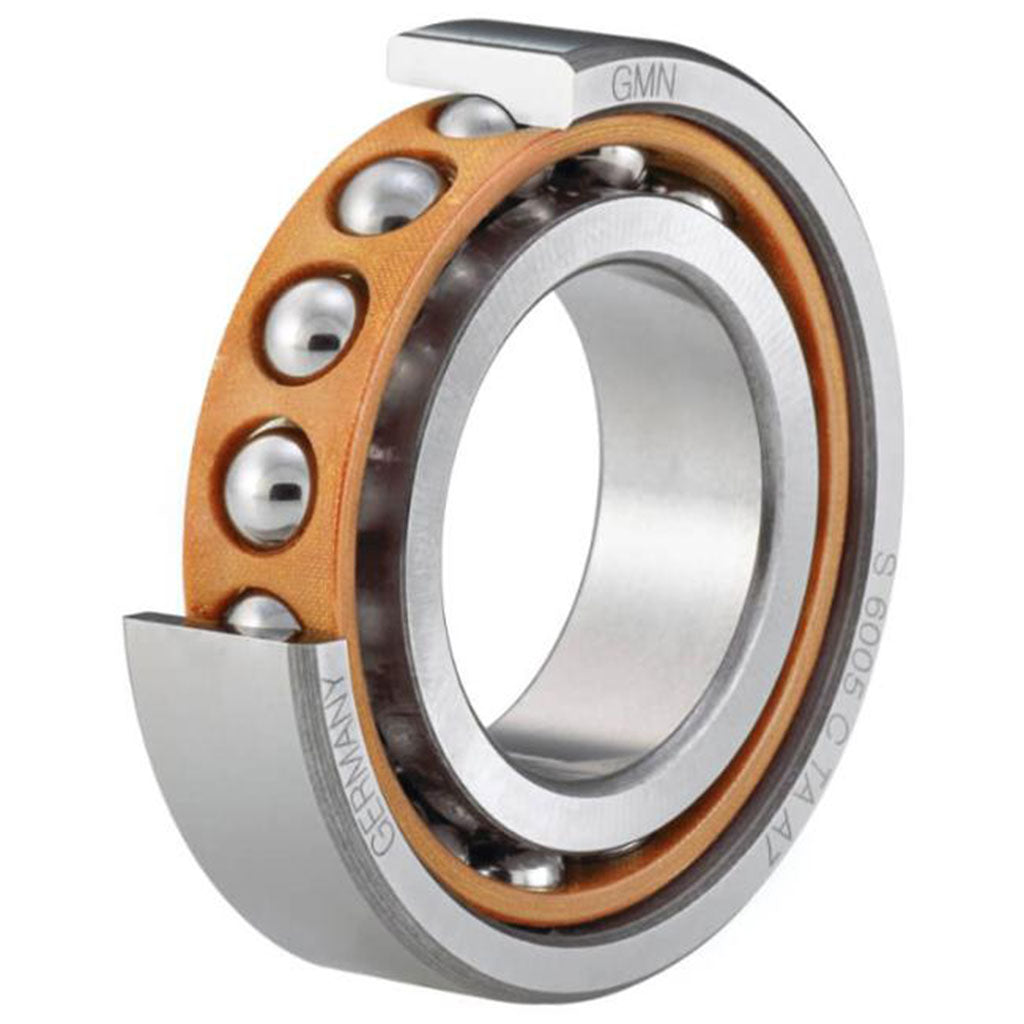

GMN Bearing S Series

Angular Contact Ball Bearings

Fast Speeds, Heavy Loads

The S “standard” series bearing adapts to many different speeds, loads and other variables.

This series fits shafts with a max ID of 120 mm and supports max RPM speeds of 195,000 (steel) / 243,750 (ceramic).

*Delivery time for this item is 1-4 weeks

Product Selection Options
Ball Material 52100 Bearing Steel or Ceramic (silicon Nitride, Si3N4)
Lubrication Grease or Oil
Contact Angle 15° (C) or 25° (E)
Cage Material Phenolic Resin (standard) or PEEK with Carbon Fiber reinforcement
Preload Light, Medium, Heavy (or custom)
Bearing Set Single, Double, Triple, or Quad Sets, with Universal Matching

Part Number Key
C 15° Contact Angle
E 25° Contact Angle
TA Phenolic Resin (standard) Cage
HY "Hybrid". Ceramic (Silicon Nitride, Si3N4) balls with 52100 Bearing Steel races

Part Number Bore Diameter d[mm] Outer Diameter D[mm] Width B[mm]
HY S 6000 C TA 10 26 8
HY S 6000 E TA 10 26 8
HY S 6001 C TA 12 28 8
HY S 6001 E TA 12 28 8
HY S 6002 C TA 15 32 9
HY S 6002 E TA 15 32 9
HY S 6003 C TA 17 35 10
HY S 6003 E TA 17 35 10
HY S 6004 C TA 20 42 12
HY S 6004 E TA 20 42 12

View full selection of bearings (pdf)

View Angular Contact Bearing Selection Guide (pdf)

Contact Us for a price quote (see contact form above ↑)
