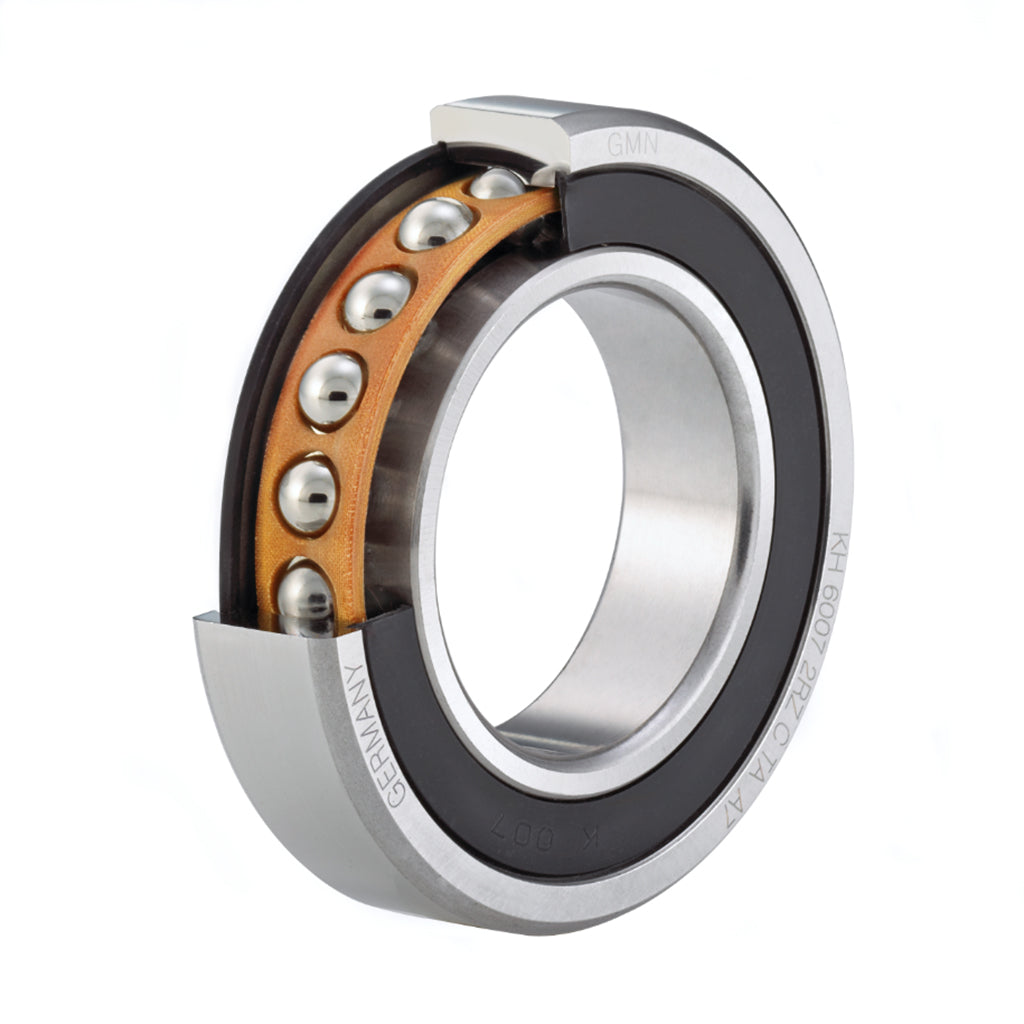

S 6210 C TA Steel Angular Contact Bearing

KH 61906 C TA Steel Angular Contact Bearing

GMNSKU: GMN-KH 61906 C TA
No reviews
Price:
$175.10
Stock:
In stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Part Number KH 61906 C TA
Series KH
Bearing Type Angular Contact


Dimensions

Bore Diameter d [mm] 30
Outer Diameter D [mm] 47
Width B [mm] 9
Pitch Circle Diameter dm [mm] 38.500
Ball Diameter Dw [mm] 3.970
OD Inner Ring d1 [mm] 35.100
OD Inner Ring - Open Side d2 [mm] 35
ID Outer Ring D1 [mm] 41.700
ID Outer Ring - Open Side D2 [mm] 43
Chamfer r1,2 [mm] 0.300
Chamfer - Open Side r3,4 [mm] 0.300

Ratings

Limiting Speed: Oil Lub. noil [RPM] 55,000
Limiting Speed: Grease Lub. ngrease [RPM] 41,000
Dynamic Radial Load Rating C [N] 4,650
Static Radial Load Rating - Steel Balls C0 [N] 2,750
Static Radial Load Rating - Si3N4 Balls C0 HY [N] 1,930

Geometric Data

Number of Balls Z [qty] 22
Contact Angle a0 [°] 17
Bearing Weight m [kg] 0.047

Mating Part Dimensions

Chamfer Associated Component ra max [mm] 0.300
Chamfer Associated Component - Open Side rb max [mm] 0.150
Abutment Diameter Inner Ring da min [mm] 33
Abutment Diameter Outer Ring Da max [mm] 43.500

Bearing Preload Data

Light Pre-Load Fv [N] 23
Light Axial Rigidity Cax [N/µm] 28
Medium Pre-Load Fv [N] 70
Medium Axial Rigidity Cax [N/µm] 43
Heavy Pre-Load Fv [N] 140
Heavy Axial Rigidity Cax [N/µm] 57
Minimum Spring Pre-Load Ff [N] 170
