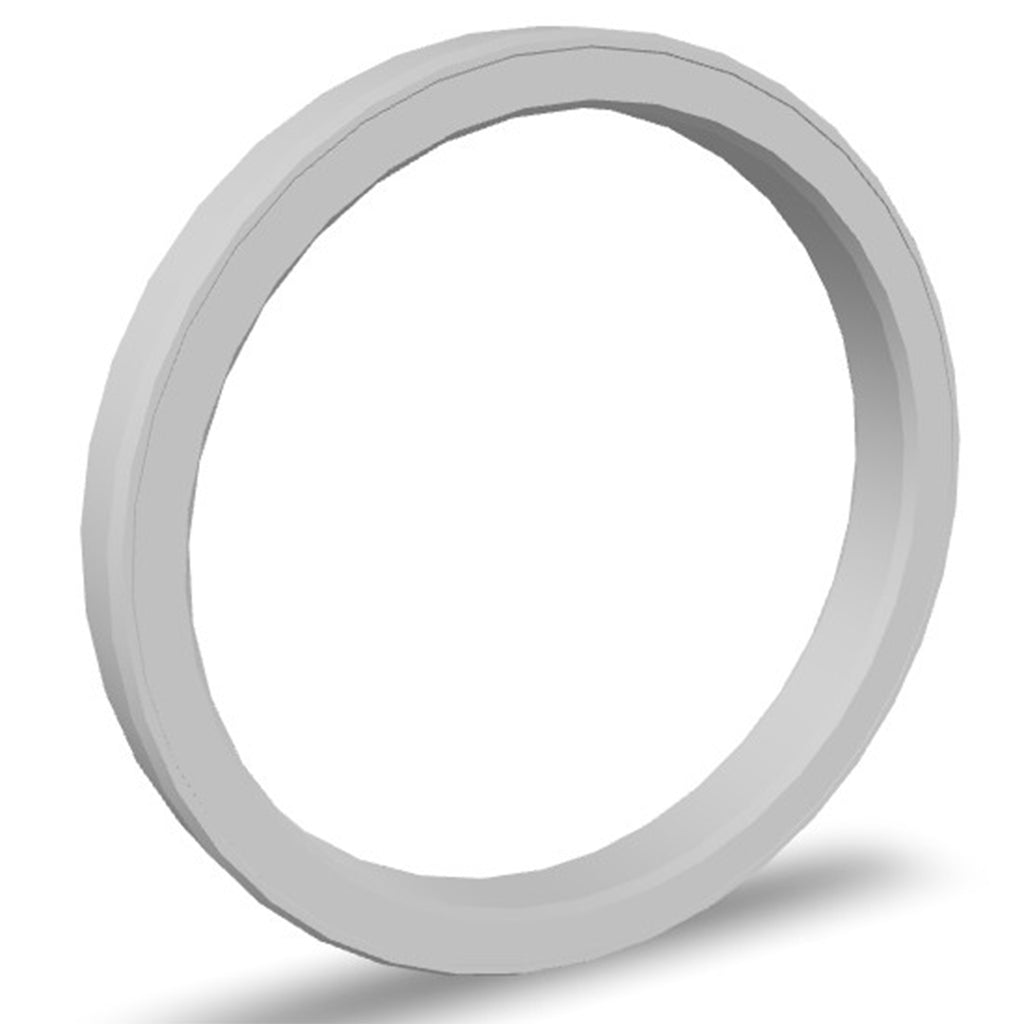

L 110 x 130 x 15 Labyrinth Seal

GMNSKU: GMN-L110x130x15
No reviews

Price:
Sale price$205.60
Stock:
In stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Part Number L 110 x 130 x 15
Series L
Drain Grooves No
Inner Ring Material Steel
Outer Ring Material Aluminum


Dimensions

Inner Diameter ID [mm] 110
Outer Diameter OD [mm] 130
Width W [mm] 15

Geometric Data

Gap Diameter e [mm] 125
Axial Clearance Sax [mm] 0.700
Weight [kg] 0.290

Shaft & Housing Tolerances

Shaft & Housing Chamfer 1.5mm × 15°
ID Tolerance h6
OD Tolerance K7
Shaft & Housing Surface Rz ≤ 16µm ; Ra ≤ 3.2µm

Ratings

Max. Speed n [RPM] 11,700
Temperature Range [°C] -40 – 200
