Standard Pressure Regulator

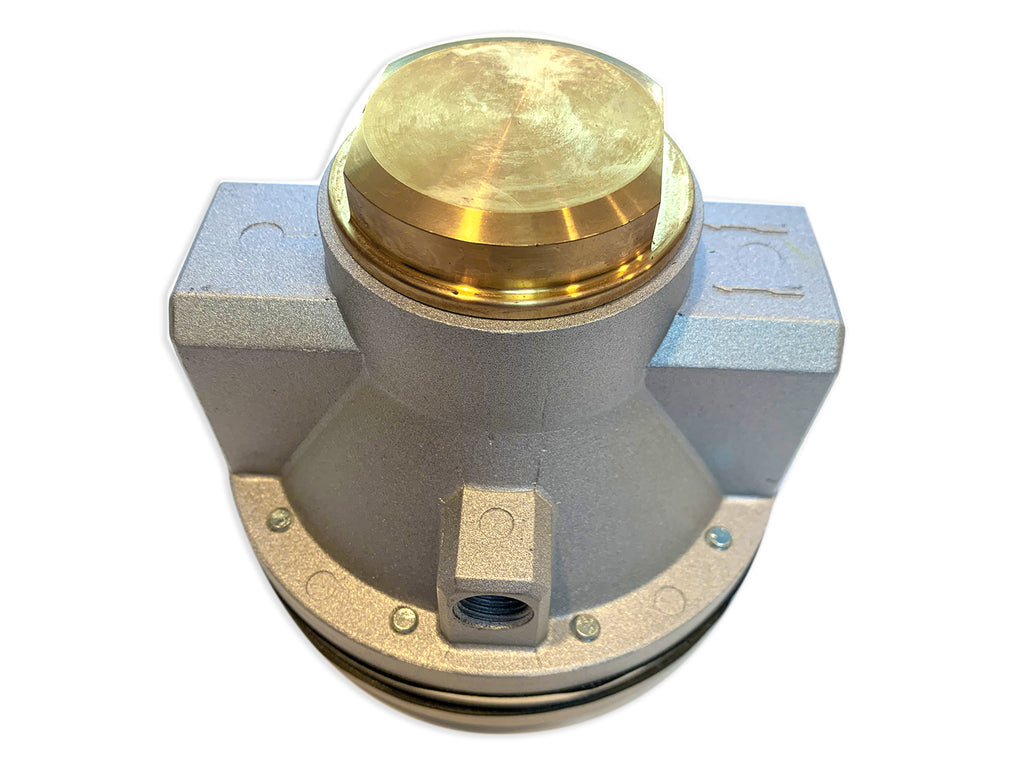

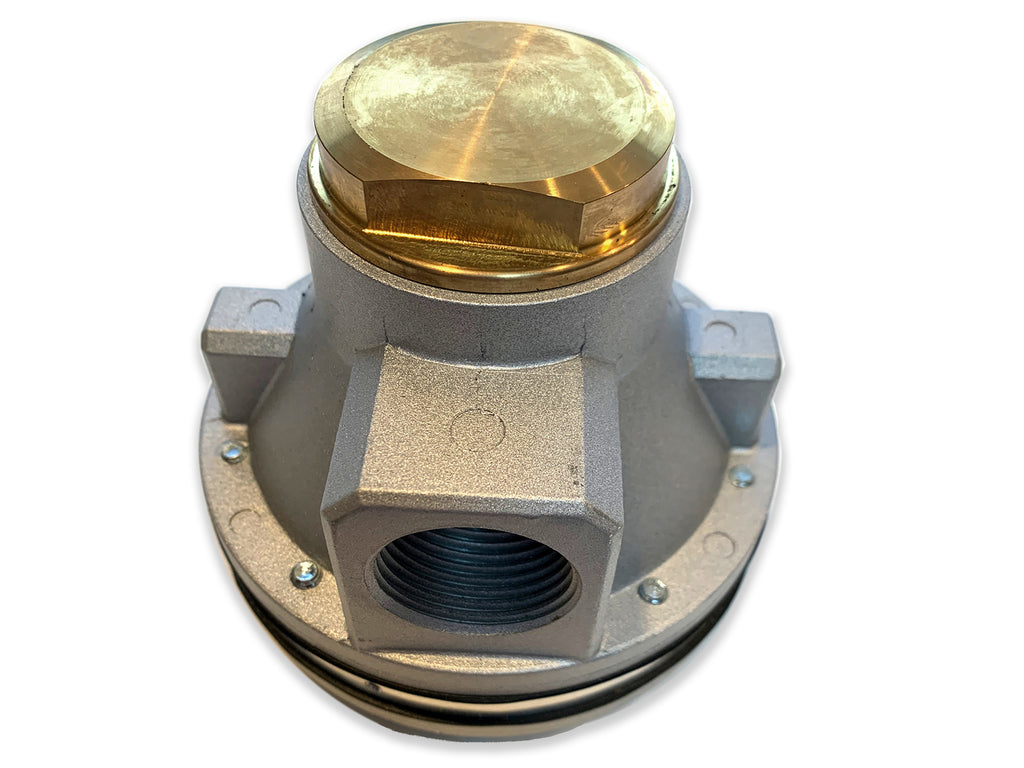

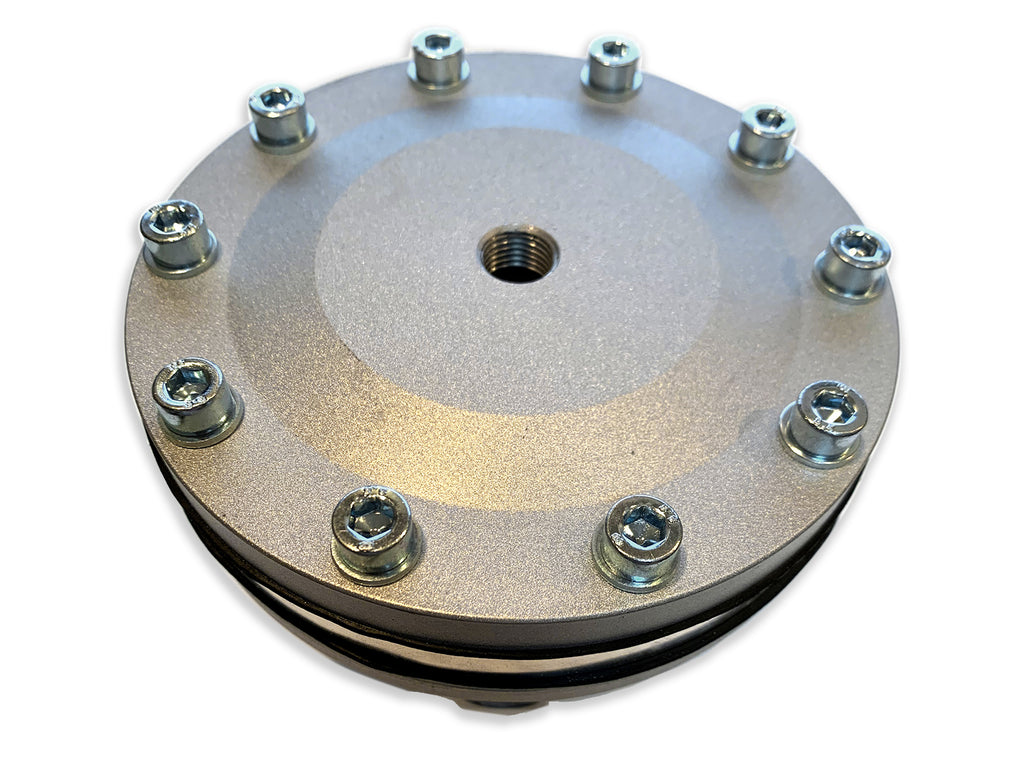

LandEfeld Standard pressure Regulator (Volume Booster) G 1" Model series 5 ART # DRI 55
|
Thread
|
G 1"
|
|
Model series
|
Model series 5
|
|
flow [l/min]
|
15.000
|
|
input pressure [bar]
|
max. 40
|
|
L [mm]
|
117,0
|
|
H [mm]
|
109
|
|
H1 [mm]
|
61
|
|
Pressure regulation area [bar]
|
0 - 20
|
|
Mounting bracket
|
BW 50
|
|
Technical data
|
|
Weight
|
1,8 kg / Pcs
|
|
GTIN
|
4050571878023
|
|
Customs duty number
|
84811099
|
|
Further information on D40RI55
|
Description - STANDARD pressure regulator (volume booster) G 1", Model series 5
Application:
A remote controlled pressure regulator is used, when high flow rates are required with a constant pressure. The pressure regulator can also be used at inaccessible locations (e.g. in hazardous or ceiling areas). The setting is made using a pilot pressure regulator that can be placed anywhere. The regulated pressure corresponds to the pressure of the remote controlled bore.
Version:
Self-relieving (with secondary vent)
Materials:
Body: die-cast zinc Z410 (model series 5 to 8: aluminium), diaphragms and seals: NBR
Temperature range:
-10°C to +80°C
Pressure gauge connection:
G 1/4"
Media:
Oiled and unoiled compressed air, non-toxic and non-flammable gasses
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•High flow at constant pressure,
•Remote-controlled pressure regulation using a pilot regulator (when using a precision pressure regulator as a pilot, it is possible to set the pressure very accurately)
Recommendation:
For best regulation results, please use the precision pressure regulator with feedback connection Type DRF 31-7 FB
