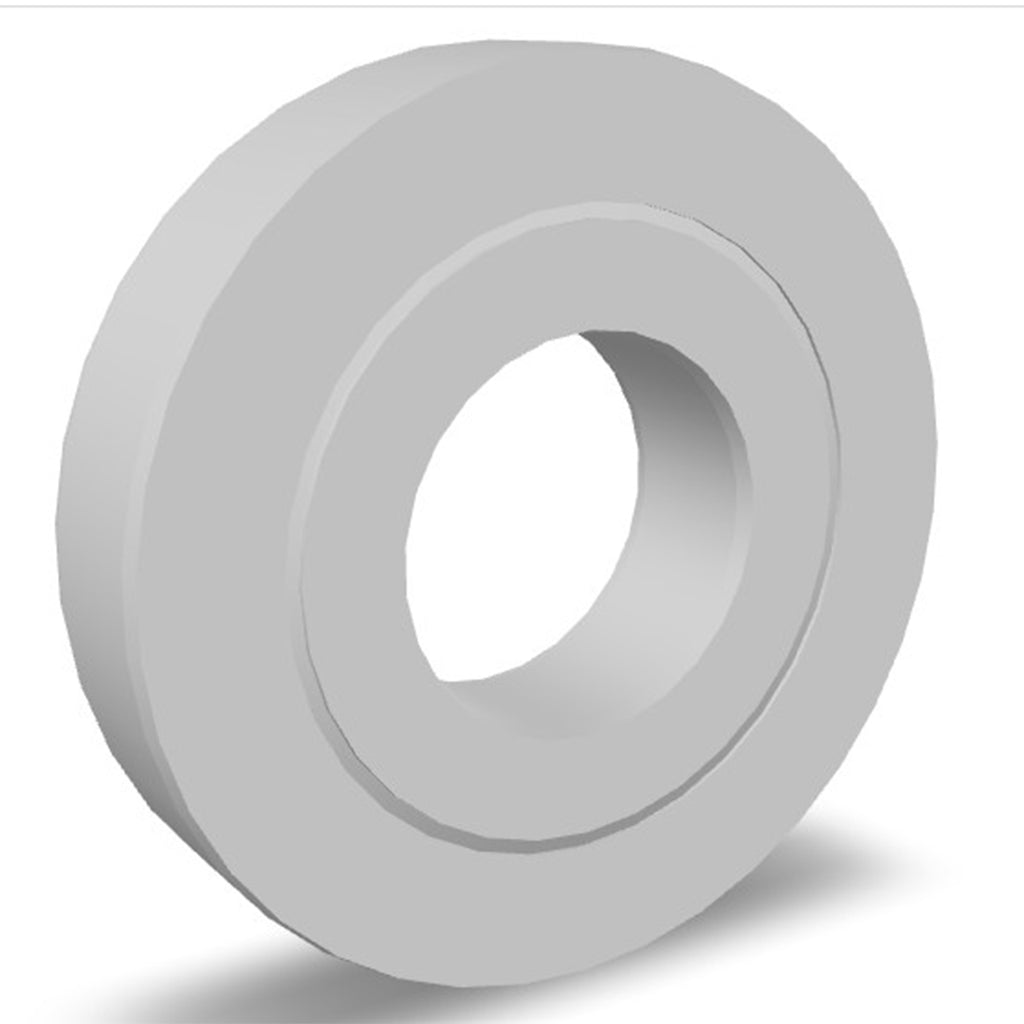

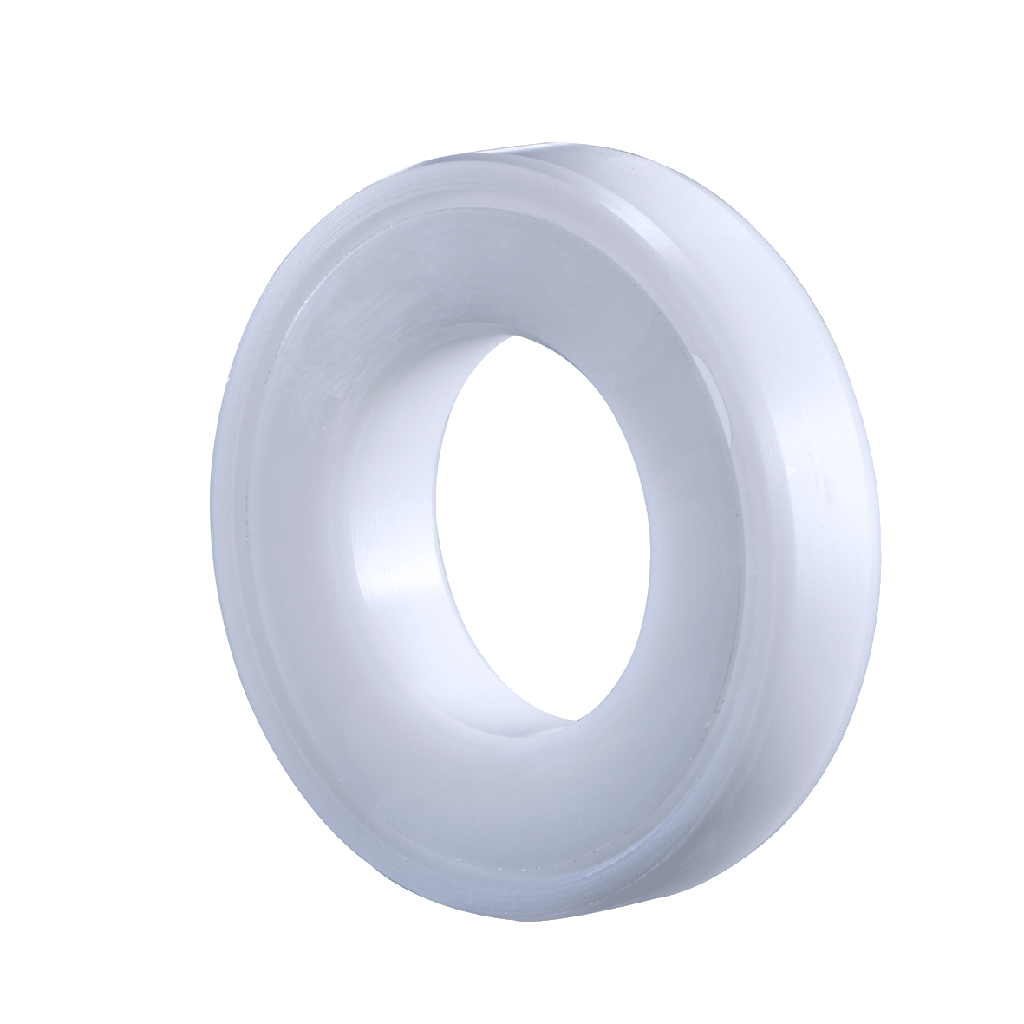

S 20 X 47 X 10 Gap Seal

GMNSKU: GMN-S 20 X 47 X 10
No reviews

Price:
Sale price$49.06
Stock:
In stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Part Number S 20 X 47 X 10
Series S
Drain Grooves No
Inner Ring Material Polyoxymethylene (POM)
Outer Ring Material Polyoxymethylene (POM)


Dimensions

Inner Diameter ID [mm] 20
Outer Diameter OD [mm] 47
Width W [mm] 10

Geometric Data

Major Gap Diameter e2 [mm] 41
Minor Gap Diameter e1 [mm] 31
Axial Clearance Sax [mm] 1
Weight [kg] 0.020

Shaft & Housing Tolerances

Shaft & Housing Chamfer 1mm × 15°
ID Tolerance h7
OD Tolerance H7
Shaft & Housing Surface Rz ≤ 16µm ; Ra ≤ 3.2µm

Ratings

Max. Speed n [RPM] 45,600
Temperature Range [°C] -40 – 60
