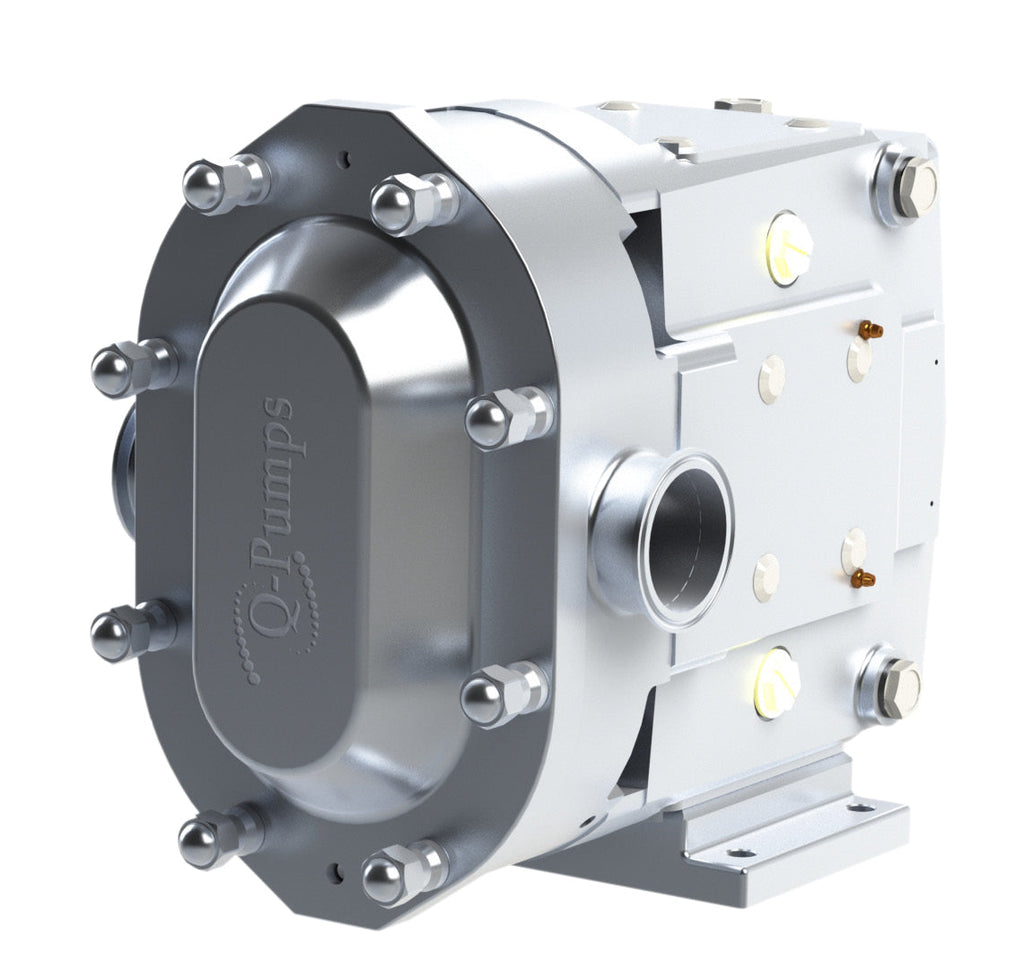

QP Series Pump QP2 220

The QP Series is characterized by being Universally interchangeable with other lines on the market, even improving the quality of the parts. Certifications: 3-A and EHEDG

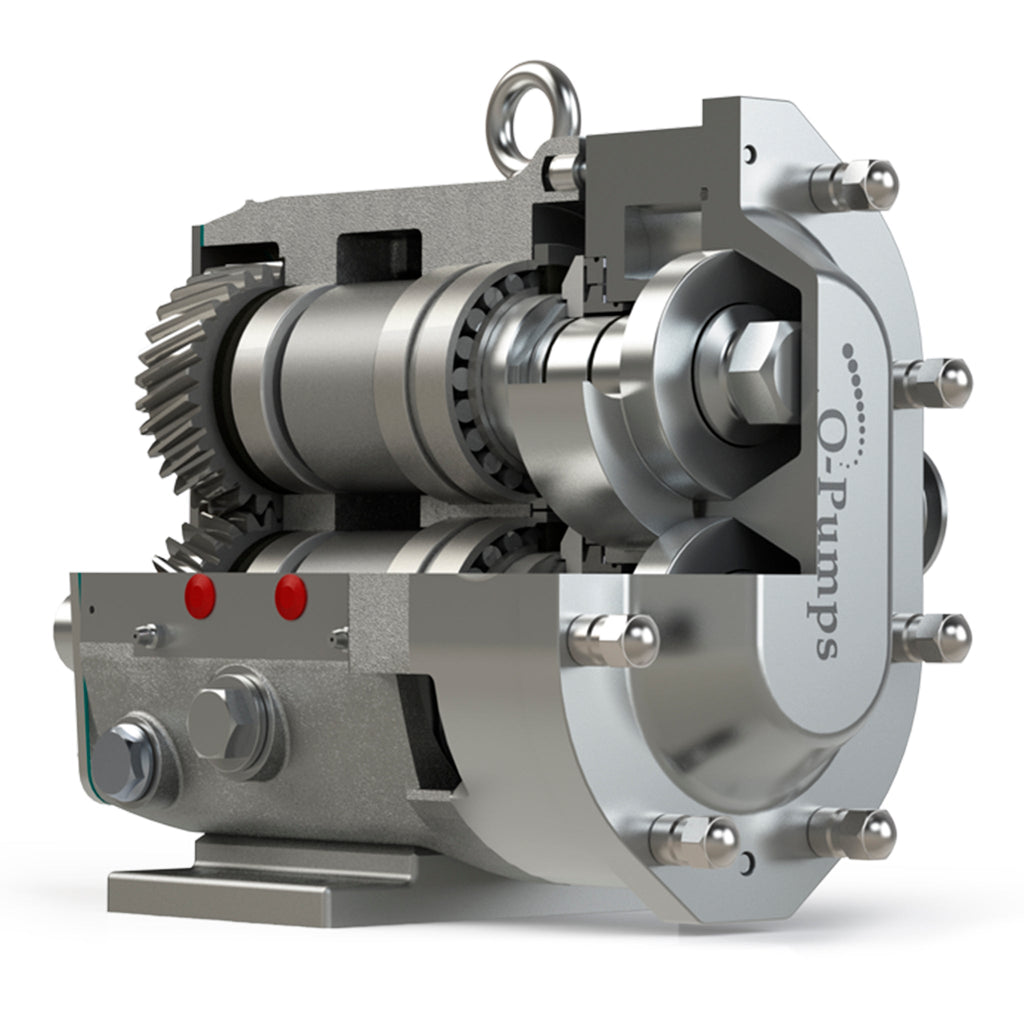

QP2 Series with its stainless steel gearcase are built for CIP-ability with enclosed rotor nuts, can handle higher pressures with its larger 17-4ph stainless steel shafts and are capable of withstanding pressures of up to 500 PSI.

• Larger shafts to increase pump life.
• All QP2 pumps and equivalents can be converted into QP3.
• Cost and time savings due to its CIP capacity.
• Designed for Clean In Place.
• 3-A Certified.

CHARACTERISTICS

• Stainless steel gear box, surpassing the quality of the competition's cast iron boxes.
• 304 stainless steel seals.
• Arrows 14-4ph H-1150.
• Helical gears.
• Flexibility for 4 mounting positions.
• Threaded grease fittings on both sides.
• 17-7ph solid wave spring.
• Antimicrobial lubricant.
• Alloy 88 rotors.
• 6 threaded oil plugs with glass sight glasses.
• With self-cleaning gaskets in the caps.

ADVANTAGES

• 100% interchangeable and compatible with the competition
• Retainers and gearbox made of stainless steel, which represents a great advantage over traditional cast iron boxes.
• Arrows built with a single metal makes them much more resistant.
• Models QP1 and QP2 can be rebuilt using larger rotors to extend equipment life.
• Remanufacturing program *: Pumps rebuilt to their original performance. Includes one year warranty

APPLICATIONS

REFERENCE DATA

Flow: 312 gpm / 1,173  lpm

Pressure: 34.5 bar / 500 psi

Viscosity: 1,000,000 cP

Temperature: 149ºC / 300ºF

DOWNLOADS

QP Series

QP2 Curves
