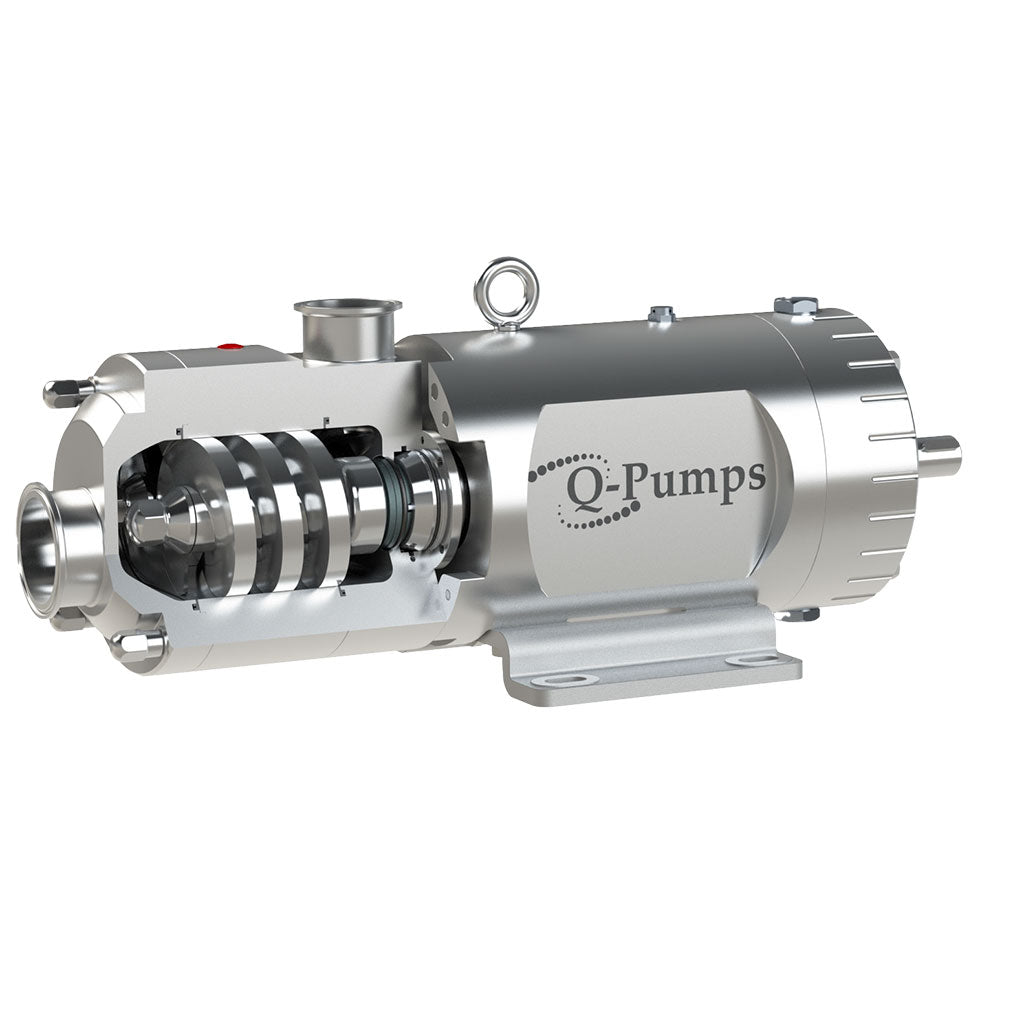

QTS Series Pump 300

The QTS is a twin screw pump, 100% sanitary use and ideal as a CIP and Process pump, which reduces time and maintenance costs. Also available with rectangular inlet. Ideal for products with high content of air and gas. Certifications: 3-A, FDA and EHEDG

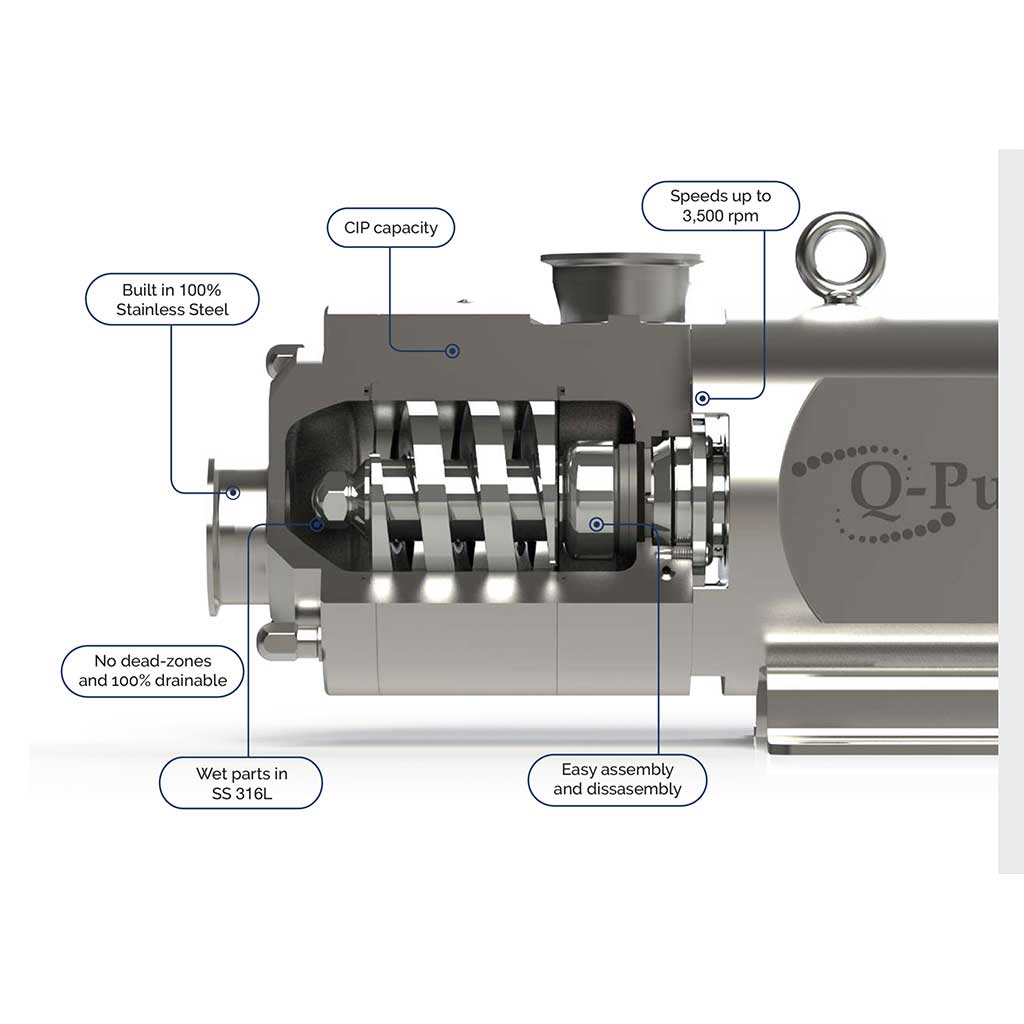

CHARACTERISTICS

• Gentle product pumping
• Superior handling of suspended solids
• Constant flow, free of pulsations
• Process and CIP with the same equipment
• Bidirectional
• Ideal for abrasive products
• Built in 100% Stainless Steel
• Speeds up to 3500 rpm
• No dead-zones and 100% drainable
• Wet parts in SS 316L
• Easy assembly
• 32 μin (0.8 μm) Ra maximum
• surface finish

ADVANTAGES

• Pulsation-free
• 100% high-speed CIP
• Constant flow
• Easy assembly and disassembly
• Ideal for abrasive products
• No contact between casing and rotor working at high pressures
• Great suction capacity that eliminates low NPSH problems
• Gentle handling of cut-sensitive products.
• 100% drainable
• Bidirectional: It is possible to recover the product from the line due to being reversible

APPLICATIONS

REFERENCE DATA

Process Flow: 223 gpm, 844 lpm

CIP Flow: 405 gpm, 1533 lpm

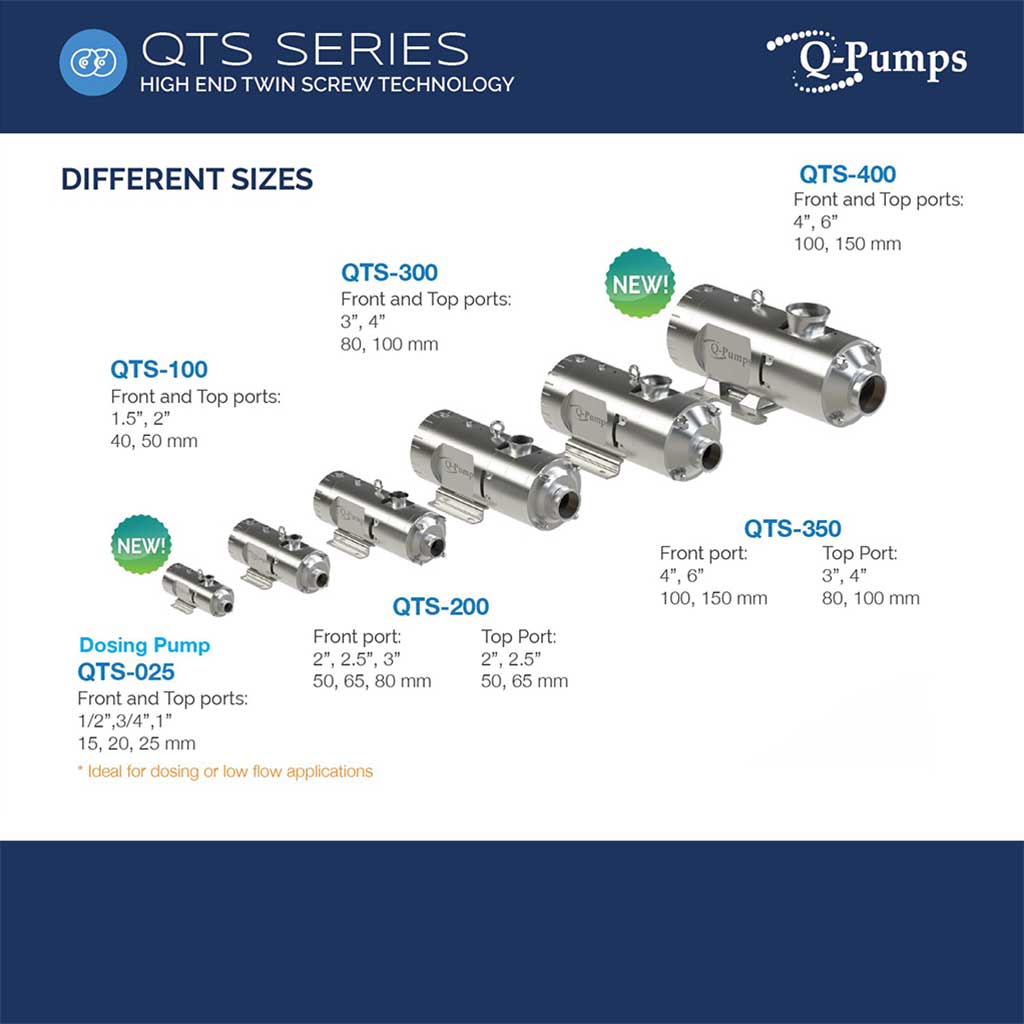

Port Sizes: 3", 4" in - 80,100 DN mm

Max Diff Pressure: 360 psi/25bar

Viscosity: 1 000 000 cP

Temperature: 248F (120C)
